SRLP170 Elica di manovra retrattile per prua/poppa Proporzionale 24V

170kg variable thrust, low profile

Questo articolo non è più in produzione. Non può più essere aggiunto al tuo carrello.

C'è un prodotto sostitutivo disponibile sotto.

•


  HOLD-FUNCTION

  Docking your vessel has never been easier. When pressing the hold button, you can rely on the thrusters to maintain the boat controlled against the dock while stepping off to secure the lines — making docking truly a one-person job.
•


  PRO - VARIABLE SPEED CONTROL

  A PRO thruster system with variable speed control allows for more precise handling of the boat in all conditions, applying only the necessary power needed to complete your maneuver confidently.

  By limiting the power under normal weather conditions, noise levels are significantly reduced. The system also includes a practical hold-function in a twin thruster system. With a single press of a button, the bow and stern thruster will keep you alongside the docks - making docking truly a one-person job. PRO thrusters are the best choice for joystick interaction.

  A PRO system contains three main elements - a control panel, a power control unit, and a DC electric thruster - all tied together with the S-link™ control system. All mechanical and main electric parts are from the well-proven thruster range produced by Sleipner for many years.

  All of Sleipner's 12 and 24 volt DC electric thrusters can be enabled for variable speed control by authorized Sleipner service personnel, even past models.
•


  INTELLIGENT POWER CONTROL

  The Sleipner unique thruster controller that intelligently protects the thruster from potential inherent problems in all high current applications as well as user faults. It includes several important safety features imperative in a product with such high power, run by DC electrics, as a thruster.

  • Provides delay between drive directions
  • Monitors solenoid functions to reduce the chance of solenoid lock-in
  • Will stop the thruster in case of a lockedin solenoid, without extra user action and even without controlling a main switch.
•


  S-LINK™

  S-Link™ is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.

  • Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
  • Unlimited number of commands or information transferred on a single cable
  • User feedback on the panel
  • Intelligent troubleshooting
•

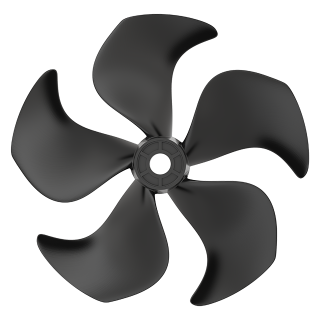

  Q-PROP™

  The 5 blade special skew propellers are designed to reduce noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust by 5%. Please see individual information on your preferred thruster model for more details.

  • Noise reductions of up to 75% measured in controlled environments
  • The expected and tested normal noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Side-Power thrusters with special adaptors
•


  OVERHEAT PROTECTION

  Detect when internal components become too hot. When an unsafe temperature is detected, the switch automatically shuts off the unit to prevent overheating.
•


  SAFE START-UP

  Sleipner control panels use duel ON buttons to engage the product to start. The safe start-up prevents the accidental initiation of products for a child-safe environment and peace of mind while on your vessel.
•


  SEALED DRIVE LUBRICATION

  Sealed gearleg with long-life "mechanical" seal where highly polished ceramic and carbon surfaces form the only moving sealing surfaces, ensuring protection against damaging water intrusion into the gear leg. Pre-filled with special gear oil for lifetime lubrication.

  • "Mechanical" seals with surfaces of ceramic and carbon for ultimate security against water intrusion
•

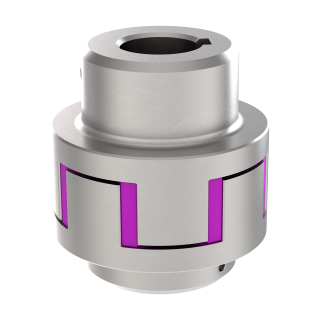

  FLEXIBLE COUPLING

  Flexible coupling between electronic motor and driveshaft protects both the electronic motor and gear systems if the propeller jams or obstructs.
•

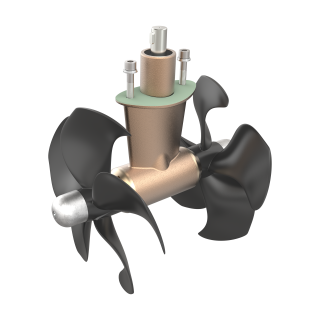

  TWIN COUNTER-ROTATING PROPELLERS

  Two counter-rotating propellers can give the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. The TC models are the favourite thrusters among leading boatbuilders for their high-end yachts.

Codice Articolo: SRLP170/250TC
