SEP170 PRO Elica di manovra per tunnel prua/poppa, 24V

170kg variable thrust

Questo articolo non è più in produzione. Non può più essere aggiunto al tuo carrello.

C'è un prodotto sostitutivo disponibile sotto.

  • PRO - VARIABLE SPEED CONTROL PRO - VARIABLE SPEED CONTROL
    PRO - VARIABLE SPEED CONTROL

    PRO - VARIABLE SPEED CONTROL

    A PRO thruster system with variable speed control allows for more precise handling of the boat in all conditions, applying only the necessary power needed to complete your maneuver confidently.

    By limiting the power under normal weather conditions, noise levels are significantly reduced. The system also includes a practical hold-function in a twin thruster system. With a single press of a button, the bow and stern thruster will keep you alongside the docks - making docking truly a one-person job. PRO thrusters are the best choice for joystick interaction.

    A PRO system contains three main elements - a control panel, a power control unit, and a DC electric thruster - all tied together with the S-link™ control system. All mechanical and main electric parts are from the well-proven thruster range produced by Sleipner for many years.

    All of Sleipner's 12 and 24 volt DC electric thrusters can be enabled for variable speed control by authorized Sleipner service personnel, even past models.

  • INTELLIGENT POWER CONTROL INTELLIGENT POWER CONTROL
    INTELLIGENT POWER CONTROL

    INTELLIGENT POWER CONTROL

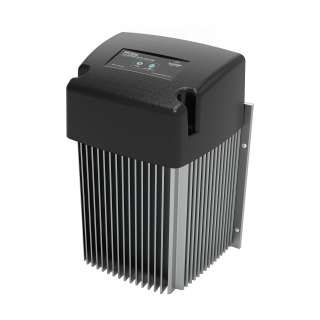

    The Sleipner unique thruster controller that intelligently protects the thruster from potential inherent problems in all high current applications as well as user faults. It includes several important safety features imperative in a product with such high power, run by DC electrics, as a thruster.

    • Provides delay between drive directions
    • Monitors solenoid functions to reduce the chance of solenoid lock-in
    • Will stop the thruster in case of a lockedin solenoid, without extra user action and even without controlling a main switch.
  • S-LINK™ S-LINK™
    S-LINK™

    S-LINK™

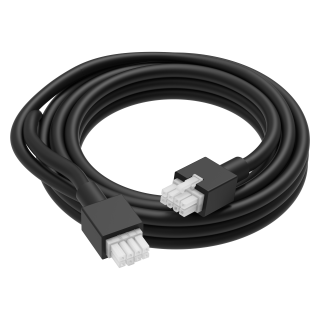

    S-Link™ is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.

    • Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
    • Unlimited number of commands or information transferred on a single cable
    • User feedback on the panel
    • Intelligent troubleshooting
  • Q-PROP™ Q-PROP™
    Q-PROP™

    Q-PROP™

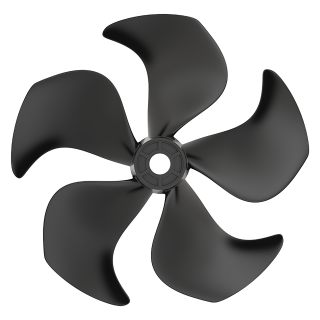

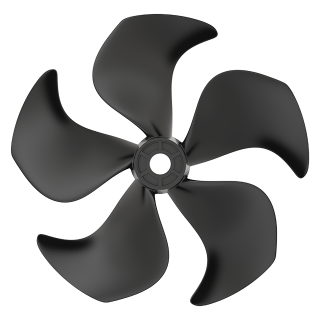

    The 5 blade special skew propellers are designed to reduce noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust by 5%. Please see individual information on your preferred thruster model for more details.

    • Noise reductions of up to 75% measured in controlled environments
    • The expected and tested normal noise reduction in average installations: 20-40%
    • Upgrade kits are available for most Side-Power thrusters with special adaptors
  • OVERHEAT PROTECTION OVERHEAT PROTECTION
    OVERHEAT PROTECTION

    OVERHEAT PROTECTION

    Detect when internal components become too hot. When an unsafe temperature is detected, the switch automatically shuts off the unit to prevent overheating.

  • FLEXIBLE INSTALLATION FLEXIBLE INSTALLATION
    FLEXIBLE INSTALLATION

    FLEXIBLE INSTALLATION

    Our Thrusters are designed to allow installation at any angle on the tunnel and the motor at various rotations on the bracket. The installation flexibility for our thruster systems is created to work with the space you have! not the space you need.

  • GALVANIC SEPARATION GALVANIC SEPARATION
    GALVANIC SEPARATION

    GALVANIC SEPARATION

    The gear house and drive legs are fully galvanically isolated/separated from the electric motor and motor bracket. This ensures that even if there is an accidental short circuit or a current leak for other reasons, the immersed parts are not affected as they could be with direct electric contact.

    • Achieved by composite bushings around the bolts and beneath the washers and a bushing in the motor bracket electrically isolating the drive housing from the motor bracket.
    • Available on DC electric models with flexible couplers only, where the flexible coupler provides galvanic separation of the motor and gearleg shaft.
  • SEALED DRIVE LUBRICATION SEALED DRIVE LUBRICATION
    SEALED DRIVE LUBRICATION

    SEALED DRIVE LUBRICATION

    Sealed gearleg with long-life "mechanical" seal where highly polished ceramic and carbon surfaces form the only moving sealing surfaces, ensuring protection against damaging water intrusion into the gear leg. Pre-filled with special gear oil for lifetime lubrication.

    • "Mechanical" seals with surfaces of ceramic and carbon for ultimate security against water intrusion
  • FLEXIBLE COUPLING FLEXIBLE COUPLING
    FLEXIBLE COUPLING

    FLEXIBLE COUPLING

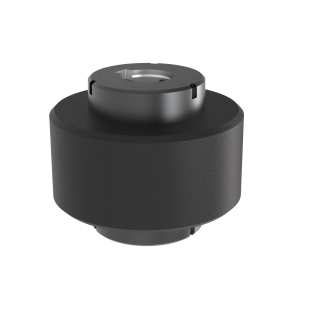

    Flexible coupling between electronic motor and driveshaft protects both the electronic motor and gear systems if the propeller jams or obstructs.

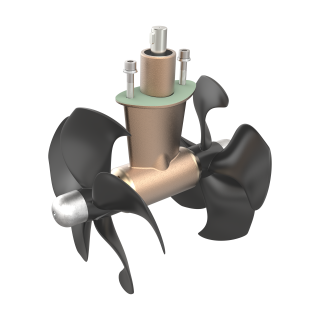

  • TWIN COUNTER-ROTATING PROPELLERS TWIN COUNTER-ROTATING PROPELLERS
    TWIN COUNTER-ROTATING PROPELLERS

    TWIN COUNTER-ROTATING PROPELLERS

    Two counter-rotating propellers can give the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. The TC models are the favourite thrusters among leading boatbuilders for their high-end yachts.

  • DC ELECTRICAL CURRENT DC ELECTRICAL CURRENT
    DC ELECTRICAL CURRENT

    DC ELECTRICAL CURRENT

    Powered by direct current

Codice Articolo: SEP170/250TC

The SEP170 PRO is mechanically built like its larger brothers, making it the market leader in its size range, suitable for boats between 50 and 70 feet. With its powerful 170-210 kgs of thrust and variable speed control, all you need to worry about when docking is getting the ropes ready.

It is fitted either in a tunnel through the boat's bow or into a stern tunnel at the boat's stern using a stern thruster kit (sold separately).

Remote control is a popular accessory. Read more about the significant product features below.

Leggi di più
50-70 ft.
50-70 ft.
Vai al prodotto sostitutivo.

Caratteristiche

PRO - VARIABLE SPEED CONTROL

PRO - VARIABLE SPEED CONTROL

A PRO thruster system with variable speed control allows for more precise handling of the boat in all conditions, applying only the necessary power needed to complete your maneuver confidently.

By limiting the power under normal weather conditions, noise levels are significantly reduced. The system also includes a practical hold-function in a twin thruster system. With a single press of a button, the bow and stern thruster will keep you alongside the docks - making docking truly a one-person job. PRO thrusters are the best choice for joystick interaction.

A PRO system contains three main elements - a control panel, a power control unit, and a DC electric thruster - all tied together with the S-link™ control system. All mechanical and main electric parts are from the well-proven thruster range produced by Sleipner for many years.

All of Sleipner's 12 and 24 volt DC electric thrusters can be enabled for variable speed control by authorized Sleipner service personnel, even past models.

INTELLIGENT POWER CONTROL

INTELLIGENT POWER CONTROL

The Sleipner unique thruster controller that intelligently protects the thruster from potential inherent problems in all high current applications as well as user faults. It includes several important safety features imperative in a product with such high power, run by DC electrics, as a thruster.

  • Provides delay between drive directions
  • Monitors solenoid functions to reduce the chance of solenoid lock-in
  • Will stop the thruster in case of a lockedin solenoid, without extra user action and even without controlling a main switch.
S-LINK™

S-LINK™

S-Link™ is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.

  • Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
  • Unlimited number of commands or information transferred on a single cable
  • User feedback on the panel
  • Intelligent troubleshooting
Q-PROP™

Q-PROP™

The 5 blade special skew propellers are designed to reduce noise levels while maintaining exceptional efficiency. Some thruster models even see an increase in thrust by 5%. Please see individual information on your preferred thruster model for more details.

  • Noise reductions of up to 75% measured in controlled environments
  • The expected and tested normal noise reduction in average installations: 20-40%
  • Upgrade kits are available for most Side-Power thrusters with special adaptors
OVERHEAT PROTECTION

OVERHEAT PROTECTION

Detect when internal components become too hot. When an unsafe temperature is detected, the switch automatically shuts off the unit to prevent overheating.

FLEXIBLE INSTALLATION

FLEXIBLE INSTALLATION

Our Thrusters are designed to allow installation at any angle on the tunnel and the motor at various rotations on the bracket. The installation flexibility for our thruster systems is created to work with the space you have! not the space you need.

GALVANIC SEPARATION

GALVANIC SEPARATION

The gear house and drive legs are fully galvanically isolated/separated from the electric motor and motor bracket. This ensures that even if there is an accidental short circuit or a current leak for other reasons, the immersed parts are not affected as they could be with direct electric contact.

  • Achieved by composite bushings around the bolts and beneath the washers and a bushing in the motor bracket electrically isolating the drive housing from the motor bracket.
  • Available on DC electric models with flexible couplers only, where the flexible coupler provides galvanic separation of the motor and gearleg shaft.
SEALED DRIVE LUBRICATION

SEALED DRIVE LUBRICATION

Sealed gearleg with long-life "mechanical" seal where highly polished ceramic and carbon surfaces form the only moving sealing surfaces, ensuring protection against damaging water intrusion into the gear leg. Pre-filled with special gear oil for lifetime lubrication.

  • "Mechanical" seals with surfaces of ceramic and carbon for ultimate security against water intrusion
FLEXIBLE COUPLING

FLEXIBLE COUPLING

Flexible coupling between electronic motor and driveshaft protects both the electronic motor and gear systems if the propeller jams or obstructs.

TWIN COUNTER-ROTATING PROPELLERS

TWIN COUNTER-ROTATING PROPELLERS

Two counter-rotating propellers can give the most thrust at a good performance ratio in a minimal tunnel diameter. This system is used in our larger thrusters for maximum power. The TC models are the favourite thrusters among leading boatbuilders for their high-end yachts.

DC ELECTRICAL CURRENT

DC ELECTRICAL CURRENT

Powered by direct current
