Vector Fins™
Vector Fins™ 1,95m² per attuatori idraulici SPS96/97 priorità all'ancora
set of port and starboard fins
-
VECTOR FINS™
The Vector Fins™ is a unique patented design available only at Sleipner that dramatically improves roll reduction while simultaneously reduce yaw and sway motions caused by standard fin designs. Constructed with innovative layered vacuum injected vinyl ester compound covering pre-molded foam makes Sleipner Vector Fins™ lighter in weight than other fins on the market.
-
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
-
PATENTED DESIGN
At Sleipner, we continually reinvest to develop and offer the latest technology in marine advancements. Often there is a void in the marine industry for a product to goes beyond the current market technology. Therefore we purposely develop and design innovative ways to not follow the industry but lead with revolutionary products. Patented products are unique one-of-a-kind designs available and sold exclusively by Sleipner.
-
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
-
S-LINK™
S-Link™ is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.
- Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
- Unlimited number of commands or information transferred on a single cable
- User feedback on the panel
- Intelligent troubleshooting
-
SMART HULL PROTECTON
Sleipner Vector Fins™ design considers the safety of your vessel above all else. Breakpoints on the fin will make it collapse in the unfortunate event of hard contact to the stabilizer system. This results in significantly reducing any damage to the hull and actuator of your vessel that could lead to expensive out-of-water repairs.
Codice Articolo: VFS1950-A
Set of port and starboard Vector fins™ in size 1.95m² with variable shaft positioning, suitable for boats between 90-140 feet.
*At anchor priority
Also available in positions:
The only top-performing stabilizer system for both cruising and at anchor-use. The fins' unique shape reduces drag and improves fuel efficiency – translating more of their power into actual roll stabilization. Enhanced comfort and safety – with none of the drawbacks from flat fins.

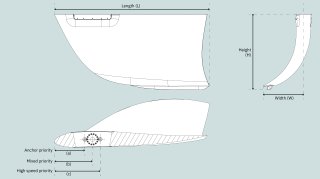

Positions
Choose between three positions:
1. At anchor priority
2. Mixed priority
3. High-speed priorityy
Benefits
- Up to 50% more efficient than flat fins.
- Up to 55% fewer side effects than flat fins.
- Advanced hydrodynamic fin design.
- 20% - 50% less resistance than other fins, results in virtually no loss of speed and thereby no added fuel consumption.
- All fins are prepared for high efficiency in any speed - 2:1 size ratio, also at anchor.
- The fins are made as a "one-shot" vacuum injected vinylester process over pre-shaped core material in a closed mold method.
- Designed with rowing and math layers to ensure maximum strength and minimum weight. Can even withstand small damages without totally disintegrating afterward as traditional production methods often allow.
Caratteristiche
VECTOR FINS™
The Vector Fins™ is a unique patented design available only at Sleipner that dramatically improves roll reduction while simultaneously reduce yaw and sway motions caused by standard fin designs. Constructed with innovative layered vacuum injected vinyl ester compound covering pre-molded foam makes Sleipner Vector Fins™ lighter in weight than other fins on the market.
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
PATENTED DESIGN
At Sleipner, we continually reinvest to develop and offer the latest technology in marine advancements. Often there is a void in the marine industry for a product to goes beyond the current market technology. Therefore we purposely develop and design innovative ways to not follow the industry but lead with revolutionary products. Patented products are unique one-of-a-kind designs available and sold exclusively by Sleipner.
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
S-LINK™
S-Link™ is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.
- Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
- Unlimited number of commands or information transferred on a single cable
- User feedback on the panel
- Intelligent troubleshooting
SMART HULL PROTECTON
Sleipner Vector Fins™ design considers the safety of your vessel above all else. Breakpoints on the fin will make it collapse in the unfortunate event of hard contact to the stabilizer system. This results in significantly reducing any damage to the hull and actuator of your vessel that could lead to expensive out-of-water repairs.
-
