Attuatori
Kit attuatore per Pinne Vector™ VF1050
-
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
-
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
-
S-LINK™
S-Link™ is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.
- Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
- Unlimited number of commands or information transferred on a single cable
- User feedback on the panel
- Intelligent troubleshooting
-
HYDRAULIC PRESSURE
Powered by hydraulic pressure.
Codice Articolo: SPS66B
The height inside a boat is often a critical measurement when installing stabilizing systems in modern boats.
Sleipner's SPS66 actuators for Vector fins™ are up to 75 percent more compact than others, constructed for easy installation and minimal noise reproduction.
Silent and Reliable Construction
Technical design benefits
- Precision machining and assembly secures a long lifetime and durability.
- No additional center lock. This is automatic in the standard hydraulic system – very safe due to the hydraulics having extreme safety limits – actually stronger than the shaft.
- Dual cylinders provide a balanced load, unlike single-cylinder solutions and less bearing load, allowing for a more compact shaft bearing assembly.
- Purpose-designed dual shaft sealing - superior to standard Simmer Ring lip seals.
- Internal hydraulic connections on actuators are pre-fitted. The installer only fits non-moving hoses/pipes - Easier and safer.
- No complex adjustments are required to set up a controller with lots of factors. These are set automatically on the first sea-trial of the boat.
- Bearing the lifetime lubricated SKF high-load bearings transferring the cylinder forces to the fins, have a built-in tightening system. This means that when you on most brands often need to change all bearings to remove a small noise from minimal bearing wear, you can instead tighten them again and keep going—saving both cost and hassle to get the bearings changed.
- Vector fins are easily and quickly installed and removed from the outside for best convenience, such as transport or other haul-out situations.
- Defined shaft-shear point in cDefined shaft-shear point in case of the fins accidentally hitting something.
- All wet parts are made of stainless steel.

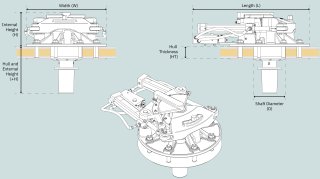

Size comparison
Size from side view compared to other brand actuators for similar fin size:
Caratteristiche
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
S-LINK™
S-Link™ is a CAN-based control system with full intelligent communication between all units in the system, much like a computer network.
- Round, compact and waterproof connectors with unique keying and color coding to avoid faulty hookup
- Unlimited number of commands or information transferred on a single cable
- User feedback on the panel
- Intelligent troubleshooting
HYDRAULIC PRESSURE
Powered by hydraulic pressure.
-
