Attuatore Elettrico SPS80E per Pinne Vector™ V3-23/V4-26/V4-19HS
230/400VAC
-
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
-
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
Codice Articolo: SPS80E

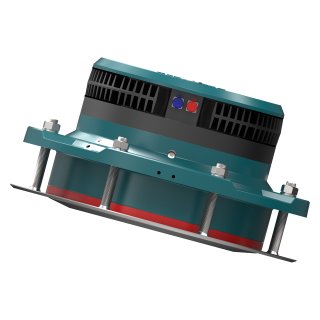

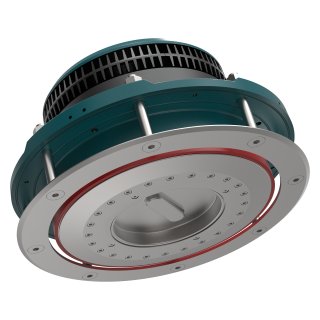

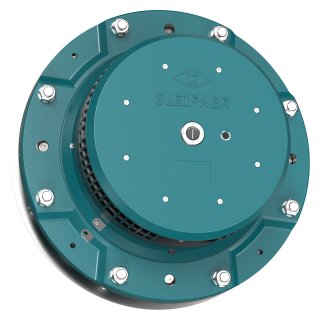

L’attuatore SPS80E è la forza motrice dietro le Sleipner Vector Fins™ per yacht nella gamma di 29–38 metri, offrendo una potente stabilizzazione in tempo reale per ridurre il rollio e ottimizzare il comfort a bordo. Rinomato per la sua compattezza ed efficienza energetica, l’SPS80E si integra senza sforzo con i sistemi degli yacht, offrendo un controllo ineguagliabile con requisiti minimi di spazio.
Alimentato da 230V o 400V (trifase) AC, regola continuamente la posizione delle pinne utilizzando algoritmi avanzati per garantire stabilità in tutte le condizioni del mare, rendendolo una soluzione ideale per grandi yacht.
Caratteristiche
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
| Main power | Valore |
|---|---|
| Power supply | 400V AC 3ϕ, 230V AC 3ϕ |
| Protection standards | Valore |
|---|---|
| Ingress protection | IP67 |
| Electric fin actuator power consumption | Valore |
|---|---|
| Peak power per actuator kW | 8 |
| Features | Valore |
|---|---|
| 360° Installation | Si |
| Any Speed | Si |
| Patented noise reduction | Si |
| Industry leading efficiency | Si |
| Plug and play signal cables | Si |
| 4-fin configuration available | Si |
| Dynamic position mode | Si |
| Eco mode | Si |
| Dock mode | Si |
| On water service possible | Si |
| Instant on | Si |
| Coordinated turn control | Si |

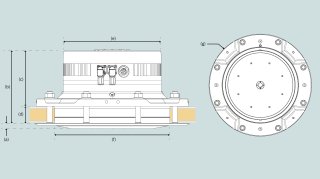

| Dimensions | Valore |
|---|---|
| (a) | 20mm / 0in |
| (b) | 349mm / 13in |
| (c) | 247mm / 9in |
| (d) | 105mm / 4in |
| ØE | 475mm / 18in |
| ØF | 537mm / 21in |
| ØG | 705mm / 27in |
| Ideal vessel integration | Valore |
|---|---|
| Typical vessel size 4-fin configuration | 45-60 |
| Typical vessel class | Barca a motore, Barca da lavoro |
| Typical vessel size | 29-38m / 95-124ft |
| Product weight | Valore |
|---|---|
| Net weight | 296kg / 652lbs |
-
Installation Manual, eVision Stabilizer (SPS60E, SPS80E)
Installation ManualInglesepdf -
Brochure Electric Vector Fins
Product catalogue & brochuresInglesepdf -
PDF.file SPS80E-V4-26 Vector Fin - Stabilizatore
Technical drawingInglesepdf -
Design and Installation Planning Guide for eVision Stabilizers
Sales Documentation, Marketing DocumentationInglesepdf -
User Manual, SPS-E
User ManualInglesepdf -
User Manual, Electric Stabilizers
User ManualInglesepdf -
STP.file SPS80E V3-23 Starboard - simplified
CAD FileInglesestp -
STP.file SPS80E V3-23 Port - simplified
CAD FileInglesestp -
STP.file SPS80E V4-21HS Portboard - simplified
CAD FileInglesestp -
STP.file SPS80E V4-21HS Starboard - simplified
CAD FileInglesestp -
STP.file SPS80E V4-26 Portboard - simplified
CAD FileInglesestp -
STP.file SPS80E V4-26 Starboard - simplified
CAD FileInglesestp
Attuatore Elettrico SPS80E per Pinne Vector™ V3-23/V4-26/V4-19HS
Guida alla navigazione dei pezzi di ricambio
Di seguito vedrai l'assemblaggio di alto livello delle unità di ricambio a tua disposizione. Se desideri un componente all'interno dell'unità presentata, fai clic sull'etichetta del nome sotto l'immagine per essere indirizzato a un elenco dettagliato dei pezzi di ricambio per quell'unità. Se non sono disponibili pezzi di ricambio aggiuntivi, significa che l'unità attuale deve essere acquistata nel suo insieme per esigenze di servizio o installazione.
1 Electric Drive unit SPS80E/SPS90E
DIN 912 - M3 x 6mm A2
Position indicator protection ring
O-ring
Position indicator cover
Position indicator arrow
DIN 7991 - M6x25 A4
Breathable vent M12x1,5
Encoder cable kit
Encoder Multiturn SE70
O-ring
Position indicator shaft
DIN 912 - M10 x 50 A2
Nord-lock M10 A4
DIN 471 - 17x1 C 75 S
DIN 625 SKF -6203
KMT 4
Connector
Connector
2 Gear Drive unit SPS80E
DIN 912 - M10 x 60
Harmonic Drive HFUC80 - 80 ratio (Matr. no.1060864 (PL))
DIN 3771 - 284 x 3 - FKM 75-80
DIN 912 - M10 x 40mm A2
Nord-lock M10
O-ring
DIN 912 - M16 x 45mm 12.9
DIN 934 - M20
DIN 128 - A20
Emergency lock sticker
M24 Hexagon socket countersunk screw
SPSE Ground Bond Wire M10 L=150
Oil plug
BSP gasket
DIN 908 w/ magnet
Lip seal Ø280x290x4,2 SPU
Double lip seal Ø280x295x10,8 SPU
O-ring
O-ring
DIN 912 - M10 x 45 A4
Esclusione di Responsabilità
Sleipner garantisce unicamente i ricambi originali forniti. L'installatore è il solo responsabile dell'installazione dei ricambi. Non tentare l'installazione di ricambi se non avete le competenze. Se il pezzo di ricambio è montato in modo errato, Sleipner Group non sarà responsabile per eventuali danni che ne derivano.
Le informazioni fornite nel documentazione erano corrette al momento della pubblicazione. Tuttavia, Sleipner Group non si assume alcuna responsabilità per eventuali inesattezze o omissioni in esso contenute. Il miglioramento continuo del prodotto può modificare le specifiche del prodotto senza preavviso. Di conseguenza, Sleipner Group declina ogni responsabilità per eventuali differenze tra prodotto e documentazione.
Typical average power consumption
At anchor complete system (both actuators together)
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 4.0sec | 5.86 | 2.59 | 0.46 |
| 4.5sec | 5.56 | 2.68 | 0.48 |
| 5.0sec | 4.89 | 2.56 | 0.48 |
| 5.5sec | 4.48 | 2.36 | 0.48 |
| 6.0sec | 4.11 | 2.17 | 0.49 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.5sec | 6.4 | 2.4 | 0.47 |
| 4.0sec | 6.3 | 2.5 | 0.47 |
| 4.5sec | 6 | 2.6 | 0.47 |
| 5.0sec | 5.3 | 2.6 | 0.47 |
| 5.5sec | 4.9 | 2.4 | 0.47 |
| 6.0sec | 4.5 | 2.3 | 0.47 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.5sec | 7.04 | 2.68 | 0.47 |
| 4.0sec | 6.76 | 2.73 | 0.46 |
| 4.5sec | 6.32 | 2.84 | 0.48 |
| 5.0sec | 5.70 | 2.81 | 0.48 |
| 5.5sec | 5.28 | 2.66 | 0.49 |
| 6.0sec | 4.83 | 2.44 | 0.49 |
| 6.5sec | 4.59 | 2.28 | 0.48 |
Peak power per actuator: 8.0kW
Notice:
This depends on many factors, including the boat's roll period, the size of the stabilizer system for the boat, and the sea state. Typically, small to medium waves are the most common conditions to anchor comfortably in.
-
