Attuatori

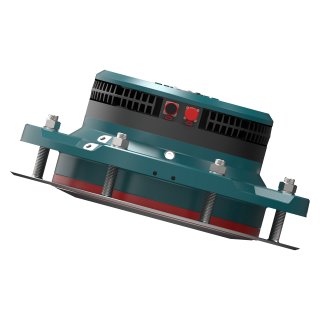

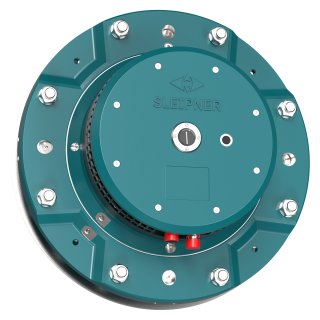

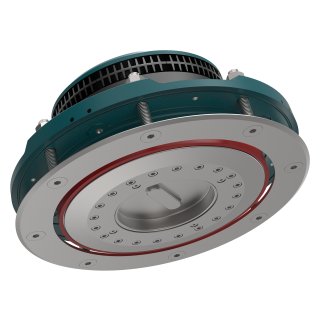

Attuatore Elettrico SPS60E per Pinne Vector™ V3-14/V4-15/V4-12HS
230-1ph/400-3ph VAC
-
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
-
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
Codice Articolo: SPS60E
L’attuatore SPS60E alimenta le Sleipner Vector Fins™ su yacht di grandi dimensioni nella gamma 19–24 metri, garantendo un controllo preciso delle pinne per minimizzare il rollio e offrire una navigazione più fluida e stabile. Conosciuto come uno degli attuatori più compatti ed efficienti sul mercato, è progettato per un’installazione facile e un’integrazione perfetta.
Alimentato sia a 48V DC che a 230V (monofase) o 400V (trifase) AC, l’SPS60E regola la posizione delle pinne in tempo reale utilizzando algoritmi avanzati, rendendolo la scelta ideale per grandi yacht che richiedono una stabilizzazione ad alte prestazioni in un design salvaspazio.
Caratteristiche
ANY SPEED
Sleipner's Vector Fins™ unique curved design comes with many benefits to improve the stabilization of your vessel.
The concave shape of the Vector Fins™ creates multilateral force direction improving the stationary positioning of a vessel while at-anchor. Tests at sea have proven that Vector Fins™ are up to 50% more efficient than standard flat fin stabilizer systems providing a safer and more comfortable boating experience.
The uniqueness of the concave shape also becomes evident while underway and only improves effectiveness as speed increases. By redirecting water forces in multiple directions at sea, tests have shown the Vector Fins™ are capable of reducing the uncomfortable rolling motion of the vessel by up to 95%.
360° INSTALLATION
These products are designed to fit in small and challenging installation areas. Planning your product placement in the past has been complicated by finding the space or rotation required for the product's requirements. The unique cone shaft design allows you to utilize the space on board to install the actuators in any direction and insert the Vector Fins™ into the position you require.
| Main power | Valore |
|---|---|
| Power supply | 230V AC 1ϕ, 400V AC 3ϕ |
| Electric fin actuator power consumption | Valore |
|---|---|
| Peak power per actuator | 5.5 |
| Features | Valore |
|---|---|
| 360° Installation | Si |
| Any Speed | Si |
| Patented noise reduction | Si |
| Plug and play signal cables | Si |
| 4-fin configuration available | Si |
| Dynamic position mode | Si |
| Eco mode | Si |
| Dock mode | Si |
| On water service possible | Si |
| Instant on | Si |
| Coordinated turn control | Si |

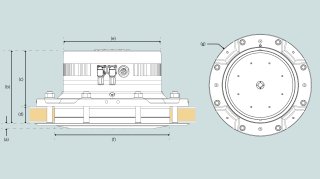

| Dimensions | Valore |
|---|---|
| (a) | 16.8mm / 0.66in |
| (b) | 232mm / 9.13in |
| (c) | 175mm / 6.89in |
| (d) | 60mm / 2.36in |
| ØE | 350mm / 13.78in |
| ØF | 408mm / 16.06in |
| ØG | 564mm / 22.20in |
| Ideal vessel integration | Valore |
|---|---|
| Typical vessel class | Barca a motore, Barca da lavoro |
| Typical vessel size | 19-24m / 62.34-78.74ft |
| Product weight | Valore |
|---|---|
| Net weight | 118kg / 260.15lbs |
-
Installation Manual, eVision Stabilizer (SPS60E, SPS80E)
Installation ManualInglesepdf -
STP.file SPS60E AC - V4-15 Vector fin Starboard - simplified 3D
CAD FileInglesestp -
STP.file SPS60E AC - V4-15 Vector fin Port - simplified 3D
CAD FileInglesestp -
Brochure Electric Vector Fins
Product catalogue & brochuresInglesepdf -
STP.file SPS60E - V3-14 Starboard AC version - simplified
CAD FileInglesestp -
User Manual, Electric Stabilizers
User ManualInglesepdf -
STP.file SPS60E V4-12HS Starboard AC version - simplified
CAD FileInglesestp -
STP.file SPS60E V4-12HS Port AC version - simplified
CAD FileInglesestp -
Design and Installation Planning Guide for eVision Stabilizers
Sales Documentation, Marketing DocumentationInglesepdf -
User Manual, SPS-E
User ManualInglesepdf
Attuatore Elettrico SPS60E per Pinne Vector™ V3-14/V4-15/V4-12HS
Guida alla navigazione dei pezzi di ricambio
Di seguito vedrai l'assemblaggio di alto livello delle unità di ricambio a tua disposizione. Se desideri un componente all'interno dell'unità presentata, fai clic sull'etichetta del nome sotto l'immagine per essere indirizzato a un elenco dettagliato dei pezzi di ricambio per quell'unità. Se non sono disponibili pezzi di ricambio aggiuntivi, significa che l'unità attuale deve essere acquistata nel suo insieme per esigenze di servizio o installazione.
1 Electric drive unit SPS60E
DIN 912 - M3 x 6
Position indicator protection ring
O-ring
Position indicator cover
Position indicator arrow
DIN 7991 - M6x20 A4
Breathable vent M12x1,5
Protection top cover painted
Encoder cable kit
Encoder Multiturn SE70
DIN 3771 - 266 x 3
DIN 912 - M10 x 35
Nord-lock M10
Position indicator shaft
KMT 4
DIN 625 SKF -6203
DIN 471 - 17x1 C 75 S
Connector
Connector
2 Gear Drive unit SPS60E
DIN 912 - M10 x 50mm 12.9
Harmonic Drive CSG58 - 120 ratio
DIN 912 - M10 x 25mm A2
Nord-lock M10 A4
DIN 3771 - 214,5 x 3mm - FKM 75-80
DIN 3771 - 307 x 3mm FKM 75-80
DIN 912 - M14 x 35mm 12.9
DIN 934 - M20 A4
DIN 128 - A20 A4
Emergency lock sticker
DIN 7991 - M20x130mm A4
SPSE Ground Bond Wire M10 L=150
Oil plug
BSP gasket
DIN 908 w/ magnet
DIN 3771 - 250 x 3mm FKM 75-80
DIN 3771 - 284 x 3mm - FKM 75-80
DIN 912 - M10 x 45mm A4
Lip seal 200x210x4,2 SPU
Double lip seal Ø200x215x10,8 SPU
Esclusione di Responsabilità
Sleipner garantisce unicamente i ricambi originali forniti. L'installatore è il solo responsabile dell'installazione dei ricambi. Non tentare l'installazione di ricambi se non avete le competenze. Se il pezzo di ricambio è montato in modo errato, Sleipner Group non sarà responsabile per eventuali danni che ne derivano.
Le informazioni fornite nel documentazione erano corrette al momento della pubblicazione. Tuttavia, Sleipner Group non si assume alcuna responsabilità per eventuali inesattezze o omissioni in esso contenute. Il miglioramento continuo del prodotto può modificare le specifiche del prodotto senza preavviso. Di conseguenza, Sleipner Group declina ogni responsabilità per eventuali differenze tra prodotto e documentazione.
Typical power consumption
At anchor complete system (both actuators together)
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.0sec | 2.11 | 1.00 | 0.24 |
| 3.5sec | 2.05 | 1.05 | 0.24 |
| 4.0sec | 1.87 | 1.09 | 0.25 |
| 4.5sec | 1.71 | 0.94 | 0.25 |
| 5.0sec | 1.52 | 0.86 | 0.26 |
| 5.5sec | 1.40 | 0.86 | 0.25 |
| 6.0sec | 1.28 | 0.79 | 0.26 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.0sec | 2.58 | 1.15 | 0.30 |
| 3.5sec | 2.73 | 1.23 | 0.32 |
| 4.0sec | 2.50 | 1.27 | 0.31 |
| 4.5sec | 2.29 | 1.30 | 0.32 |
| 5.0sec | 2.05 | 1.20 | 0.33 |
| 5.5sec | 1.90 | 1.10 | 0.33 |
| 6.0sec | 1.74 | 1.01 | 0.33 |
| Maximum | Medium to big waves | Small to medium waves | |
|---|---|---|---|
| Roll Time | 100% stabilisation effort(kW) | 66% stabilisation effort(kW) | 33% stabilisation effort(kW) |
| 3.0sec | 3.17 | 1.37 | 0.35 |
| 3.5sec | 3.26 | 1.43 | 0.35 |
| 4.0sec | 3.06 | 1.50 | 0.35 |
| 4.5sec | 2.86 | 1.54 | 0.37 |
| 5.0sec | 2.51 | 1.42 | 0.37 |
| 5.5sec | 2.30 | 1.30 | 0.37 |
| 6.0sec | 2.13 | 1.20 | 0.38 |
Peak power per actuator: 5,5kW
Notice:
This depends on many factors, including the boat's roll period, the size of the stabilizer system for the boat, and the sea state. Typically, small to medium waves are the most common conditions to anchor comfortably in.
-
